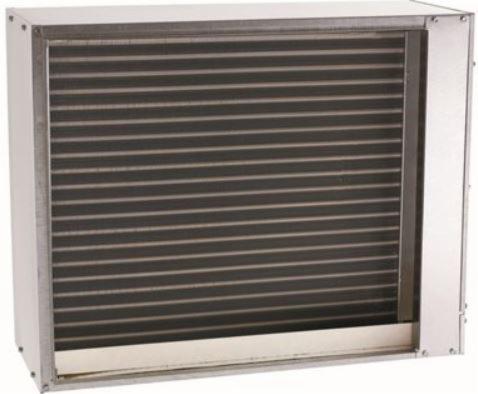

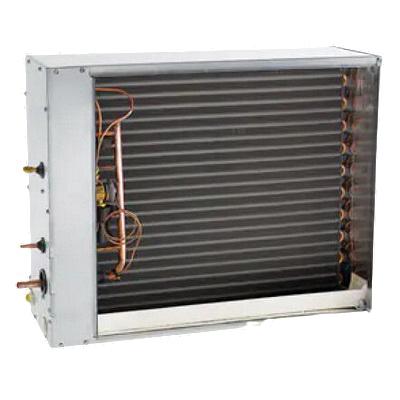

American Standard® - TRANE® 4PXF Series 4PXFH003AZ3HHA Heat Pump/Cooling Indoor Coil, Evaporator, Plate Fin Coil, 18000 to 36000 Btu
- Item #: 4PXFH003AZ3HHA
- Manufacturer: 4PXFH003AZ3HHA selecatableMap $selecatableMap.size() \\ selectableItemList $selectableItemList.size()
- Brand Name: American Standard®
- Min. Order Qty: 1
- Qty. Interval: 1
Built from the ground up to be the go-to for horizontally installed coils. The 4PXFH/5PXFH coils feature an array of different models for just your needs, making them a great way to find the perfect fit for your needs at the right price.
TRANE® Heat Pump/Cooling Indoor Coil, Series: 4PXF Series, 1.5 to 2 ton Nominal Capacity, 18000 to 36000 Btu, A-Coil, Cased Horizontal, 400 to 2000 cfm, R-410A Refrigerant, 12 FPI Coil, Evaporator, Plate Fin Coil, 3/4 x 3/8 in Connection, Brazed Connection, 3 Rows, 4.58 sq-ft Face Area, 21 in H x 30 in D Fin, Aluminum/Copper, 24-1/2 in H x 10-1/2 in W x 36-1/2 in D, Additional Information: 3/8 in Tube, Non-Bleed TXV Control, 3/4 in NPT Drain
Specification Sheet
- Automatic self metering - Capable of being used in both heating and cooling applications, our non-bleed thermal expansion valve features a mechanical fitting on both sides of the coil
- Foil backed insulation - Provides easy cleaning and quiet operation
- Non-corrosive drain pan - The two-way, sloped, noncorrosive drain pan prevents standing water, and also helps reduce the growth of mold, mildew and bacteria
- Glavanized steel cabinet - The durable unpainted steel protects from rust and corrosion
